Extruda

Colour Options:Black | S8500-N

Variant

A complete range of colour co-ordinated vinyl accessories to ensure a perfect finish.

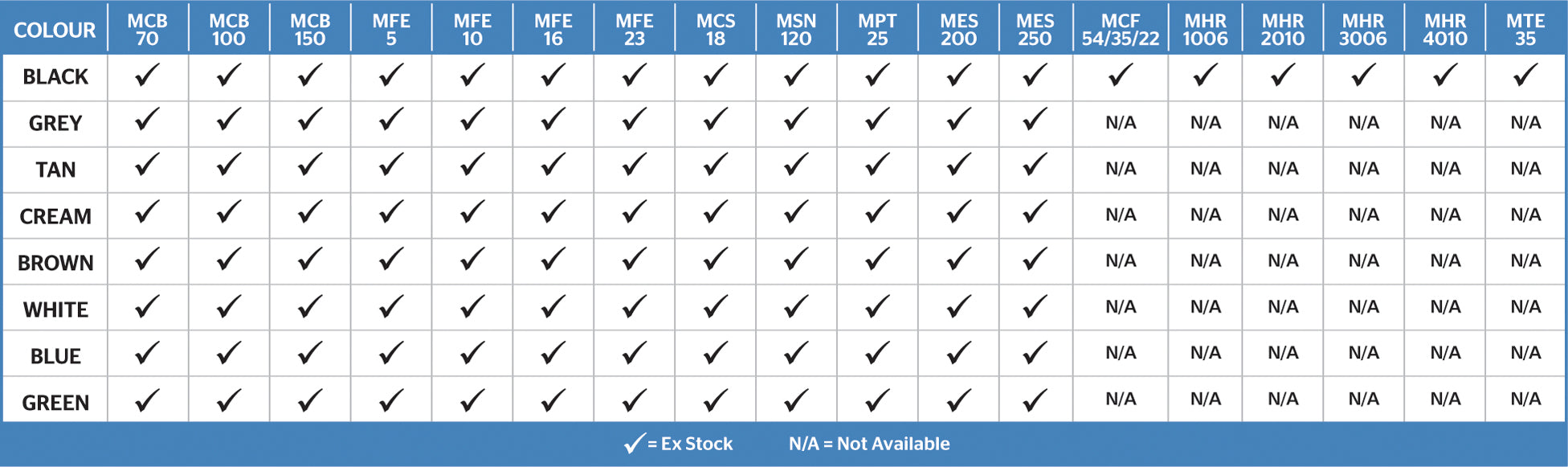

The Extruda range of vinyl accessories has been developed to ensure that a complete system is offered. The Extruda profiles are thus available either ex-stock or on a made-to-order basis, in 8 specially selected standard colours. These colours have been selected to enable the customer the widest possible choice in that the colours are co-ordinated with the major flooring products which FloorworX manufactures and distributes.

Specifications

For more information please contact the FloorworX Technical Department by sending your query to info@floorworx.co.za

Installation

In all cases, except for Handrail, FloorworX No. 71 contact adhesive should be used. It should be spread evenly and quickly with a brush onto both material and working surface. Allow both surfaces to become touch dry – it takes approximately 15 minutes. Place material carefully into position at one end, then work gradually along its length. When completely positioned, apply firm pressure along the whole length to ensure perfect contact between the two adhesive surfaces.

For more information please contact the FloorworX Technical Department by sending your query to info@floorworx.co.za

Areas of Use

Hospitals
Leisure
Residential
Education
Retail
Commercial

Warranty

FloorworX offers a 1 year limited warranty, subject to our terms and conditions, against defective material provided that it is installed and maintained in accordance with our recommendations.

Product Adhesive

In all cases, except for Handrail, FloorworX No. 71 contact adhesive should be used. It should be spread evenly and quickly with a brush onto both material and working surface. Allow both surfaces to become touch dry – it takes approximately 15 minutes. Place material carefully into position at one end, then work gradually along its length. When completely positioned, apply firm pressure along the whole length to ensure perfect contact between the two adhesive surfaces.

Extruda

R 0.00

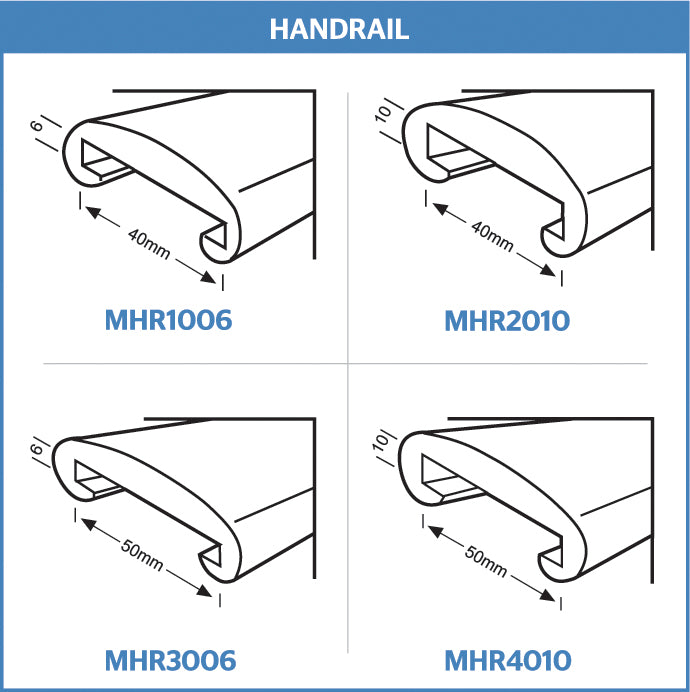

Handrail

Handrail is specially designed to combine decorative appeal with functionality. The wide variety of angles, bends and wreaths that can be achieved, allow architectural scope in the design and finish of staircases and landings. Standard rails are manufactured from a tough, gloss finished flexible vinyl that is easily installed and maintained.

MHR1006:(40 x 6mm) packed in rolls of 20m

MHR2010:(40 x 40mm) packed in rolls of 20m

MHR3006:(50 x 6mm) packed on rolls of 20m

MHR4010:(50 x 10mm) packed in rolls of 20m

All dimensions are to be read as nominal values.

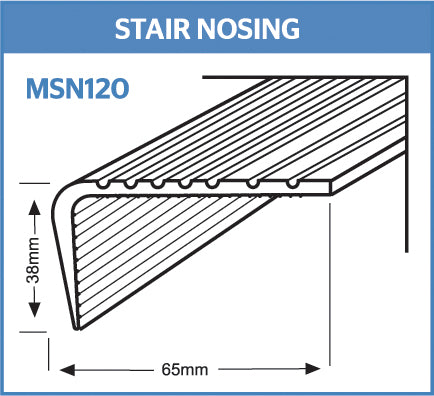

Stair Nosing

Stair Nosing is designed to provide a neat and effective non-slip tread to any step surface. It may be used by itself or in conjunction with any resilient floor finish suitable for stairs.

MSN120: (65mm wide)in 15m pack consisting of 5 lengths of 3m

All dimensions are to be read as nominal values.

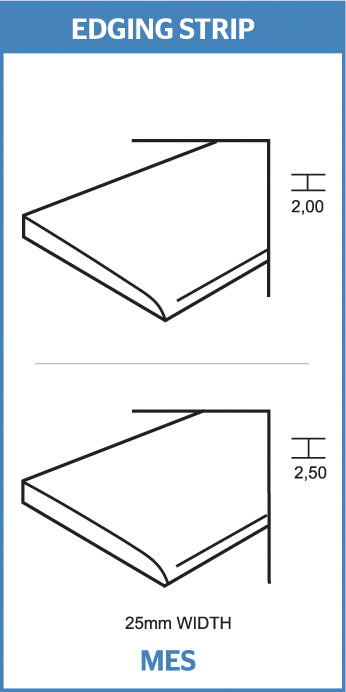

Edging Strip

Edging strip provides a neat and safe bevelled egde in doorways or wherever a difference in surface levels occur.

MES200: (25mm wide) packed in rolls of 30m

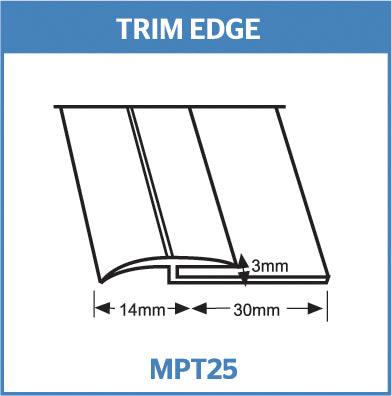

Trim Edge

Trim Edge Provides a neat and safe finishing link between two floors coverings.

MPT25: (25mm wide) packed in rolls of 30m

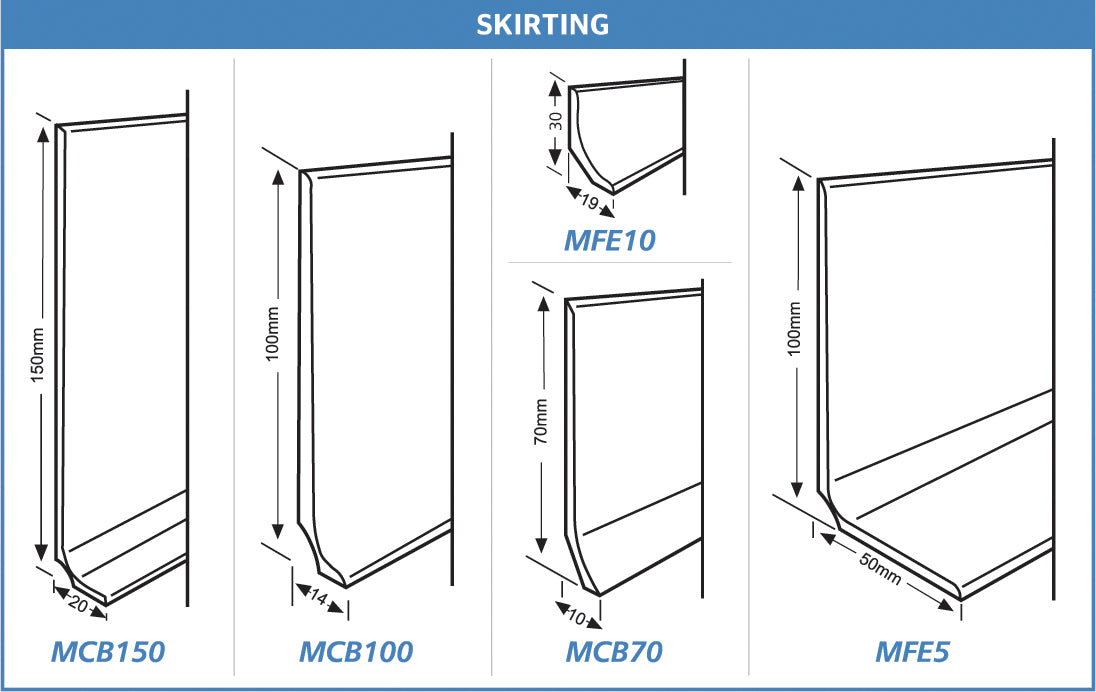

Skirting

MCB70: (70mm high) packed in rolls of 30m

MCB100: (100mm high) packed in rolls of 30m

MCB150: (150mm high) vertical skirting used in areas where fillets are not required. Packed in rolls of 30m

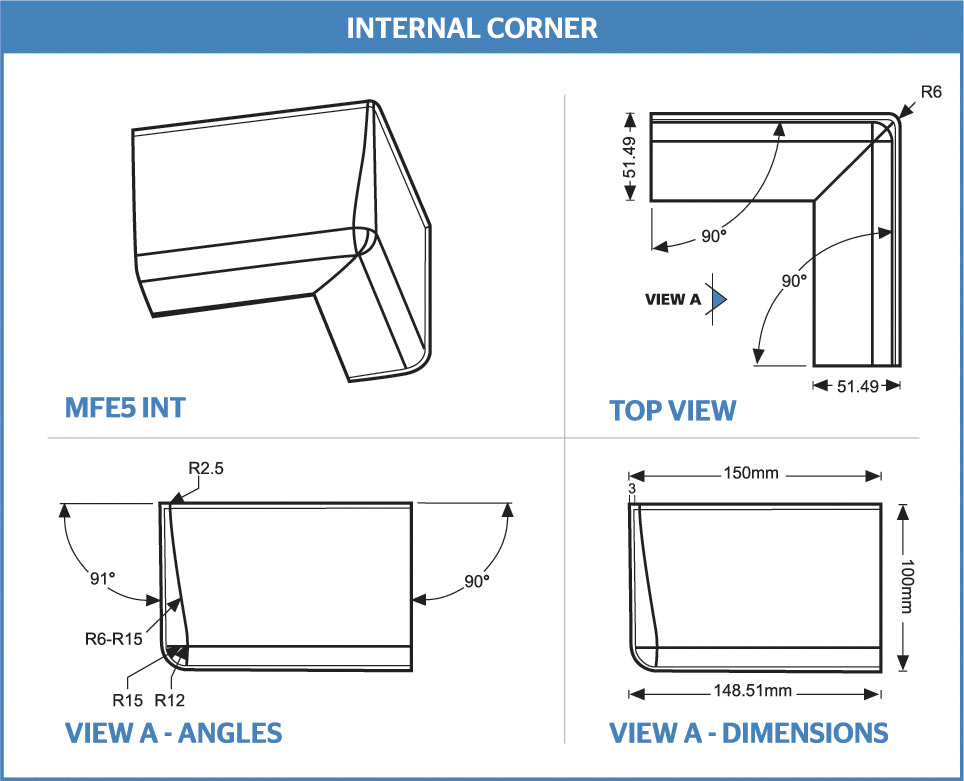

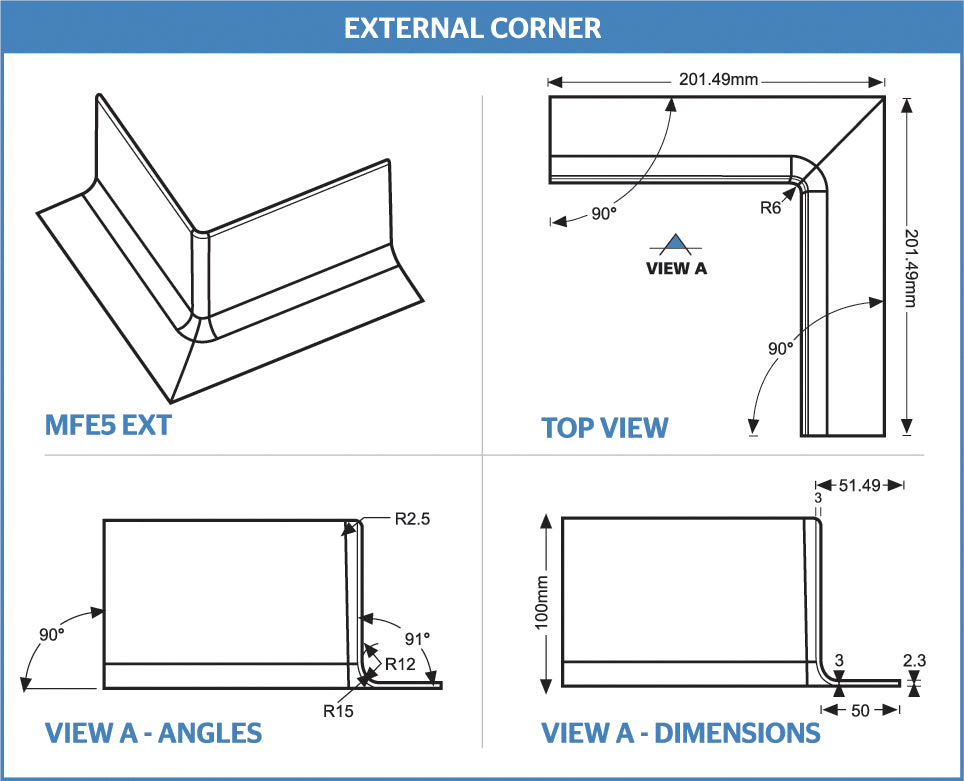

MFE5: (100mm high) hospital skirting with 50mm lip, packed in rolls of 15m

MFE10: (30mm high) packed in rolls of 30m

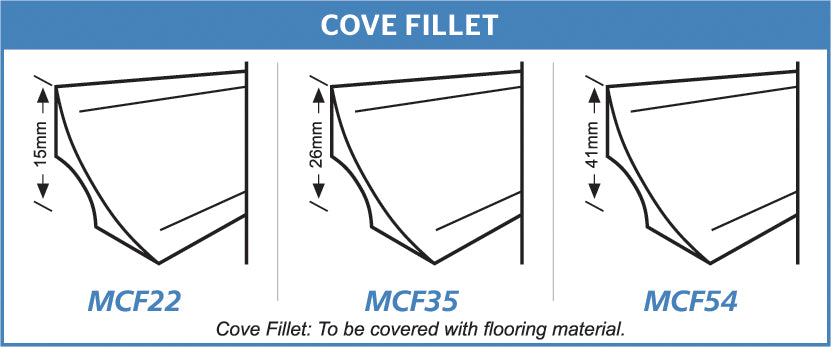

Cove Fillet

Cove Fillet for use where the vinyl floor covering is to be turned up the walls.

MCF54: (41mm high) packed in rolls of 15m

MCF35: (26mm high) packed in rolls of 30m

MCF22: (15mm high) packed in rolls of 30m

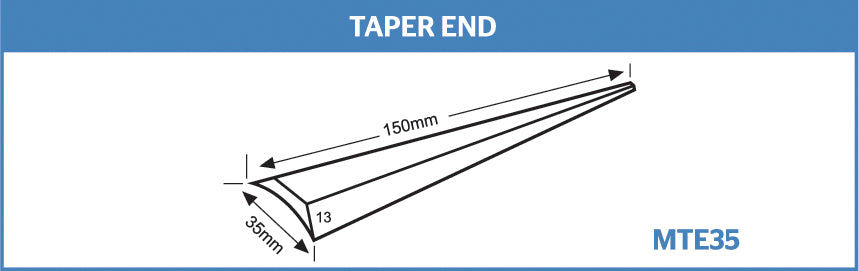

Taper End

The product is an injection moulding and is only available in black. It is intended to be used in conjunction with Cove Fillet at doorways to hide the gap that is often visible at that junction.

MTE35: Sold per unit

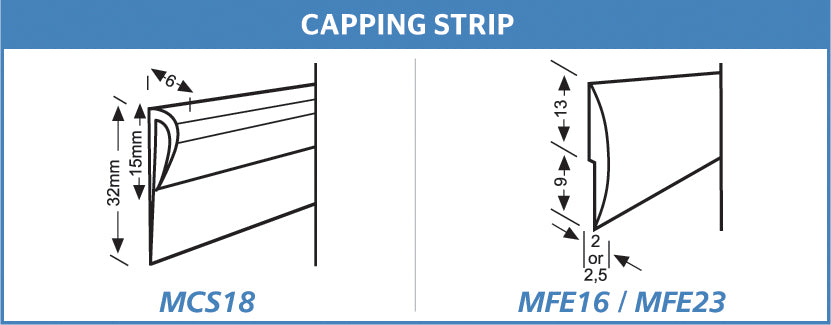

Capping Strip

A Capping Strip to give a neat finish at the end of vinyl wall cladding or where flexible wall sheeting has been turned up the wall or over MCF54/35/22 fillet to form skirting or cladding. Packed in 30m rolls.

MFE16: (22mm high, for use with 2.0mm thick sheeting turn up) packed in rolls of 30m

MFE23: (22mm high, for use with 2.5mm thick sheeting turn up) packed in rolls of 30m

MCS18: (32mm high) packed in rolls of 30m
